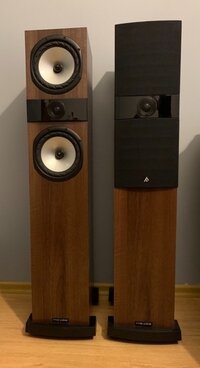

Tower Speaker

Using trickle down technology from the F1 series, this elegant, contemporary speaker distils the best of Fyne Audios new technologies and expertise into a midsized floorstanding design. Built in the UK the F703 blends a 250mm IsoFlare point source driver and 250mm multi-fibre bass driver into a twin cavity tuned cabinet with a BassTrax LF diffuser integrated into the down firing port. Articulate, powerful and capable of delivering stunning dynamics and real world volumes, the F703 recreates a truly captivating Hi-Fi listening experience for audiophiles.

System Type 2 way, downwards firing port, with BassTraxTM Tractrix diffuser. Twin cavity coupled reflex Recommended amplifier power (Watt RMS) 40- 180 Continuous power handling (Watt RMS) 90 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 30Hz- 34kHz Drive unit complement 1 x 200mm IsoFlareTM, multi-fibre bass/ mid, with 25mm titanium, dome compression tweeter. 1 x 200mm multi-fibre bass Crossover frequency 250Hz & 1.7kHz Crossover type 2nd order low pass, 1st order high pass Dimensions - HxWxD 1114 x 322 x 380mm (43.9 x 12.7 x 15.0) Weight - Each 25.2kg (55.6lb) Finishes Dark Oak / Black Oak / Piano Gloss Black / Piano Gloss White

System Type 2 way, downwards firing port, twin cavity, BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 30 - 200 Peak power handling (Watt) 400 Continuous power handling (Watt RMS) 100 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 30Hz - 34kHz Drive unit complement 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, ferrite magnet system. Cryo-Lite treated. Crossover frequency 1.8kHz Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass System adjustments High frequency energy (1.8kHz - 26kHz) +/- 3dB, Presence (2.5kHz - 5.0kHz) +/- 3dB Dimensions - HxWxD 873 x 380 x 300mm (34.4 x 15.0 x 11.8") Weight - Each 29.1kg Finishes Walnut

F302 ; Sensitivity (2.83 Volt @ 1m), 90dB ; Nominal impedance, 8 Ohm ; Frequency response (-6dB typical in room), 36Hz-28kHz ; Drive unit complement, 1 x 150mm ... Frequency response (-6dB typical in room): 36... Crossover frequency: 3.2kHz

System Type 2 way, rear ported Drive unit complement 1 x 150mm multi-fibre bass / mid 1 x 25mm titanium dome tweeter Crossover frequency 3.2kHz Crossover type 2nd order low pass, 3rd order high pass Dimensions - HxWxD 932 x 233 x 308mm (36.7 x 9.2 x 12.1)

System Type 2 way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system Recommended amplifier power (Watt RMS) 30- 200 Continuous power handling (Watt RMS) 100 Sensitivity (2.83 Volt @ 1m) 92dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 30Hz - 34kHz Drive unit complement 1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround. Crossover frequency 250Hz & 1.7kHz Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. Dimensions - HxWxD 1111 x 338 x 380mm (43.7 x 13.3 x 15.0) Weight - Each 30.4kg (67.0lb)

System Type 2 way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system Recommended amplifier power (Watt RMS) 30 180 Continuous power handling (Watt RMS) 80 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 36Hz 34kHz Drive unit complement 1 x 150mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 150mm multi-fibre bass cone, FyneFlute surround. Crossover frequency 250Hz & 1.7kHz Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. Dimensions - HxWxD 984 x 288 x 320mm (38.7 x 11.3 x 12.7) Weight - Each 21.0kg (46.3lb) Finishes Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White

The Tempus 55 is designed as a compact 2.5-way floorstanding speaker and is equipped with two 170 mm FE Dynamics chassis. The Klippel-optimized, lightweight coated paper cone ensures an excellent resolution and optimum speed. A ventilated voice coil unit is utilized in this setup for maximum load capacity.

System Type 2 way IsoFlare loudspeaker for in ceiling or in wall application Peak power handling (Watt) 250 Continuous power handling (Watt RMS) 62.5 Sensitivity (2.83 Volt @ 1m) 89dB Nominal impedance 8 Ohm

Every element of acoustic innovation featured in the Concept 50 is geared towards designing the quietest cabinet possible. Unaffected by internal and external resonances these speakers deliver focused stereo imaging, accurate audio and an extended holographic soundstage to emulate a live performance in the home.

System Type 2 way, downwards firing port with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 20 - 280 Peak power handling (Watt) 500 Continuous power handling (Watt RMS) 140 Sensitivity (2.83 Volt @ 1m) 94dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 26Hz - 26kHz Drive unit complement 1 x 250mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system Crossover frequency 750Hz Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated System adjustments High frequency energy (750Hz - 26kHz) +/-3dB Presence (2.5kHz - 5.0kHz) +/- 3dB Dimensions - HxWxD 1191 x 405 x 581mm (46.9 x 15.9 x 22.9) Weight - Each 57.7kg Finishes Piano Gloss Walnut

System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 20 - 350 Peak power handling (Watt) 600 Continuous power handling (Watt RMS) 175 Sensitivity (2.83 Volt @ 1m) 96dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 24Hz - 26kHz Drive unit complement 1 x 300mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system Crossover frequency 750Hz Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated System adjustments High frequency energy (750Hz - 26kHz) +/-3dB Presence (2.5kHz - 5.0kHz) +/- 3dB Dimensions - HxWxD 1350 x 450 x 680mm (53.2 x 17.7 x 28.6) Weight - Each 72kg Finishes Piano Gloss Walnut

System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 20 - 280 Peak power handling (Watt) 560 Continuous power handling (Watt RMS) 140 Sensitivity (2.83 Volt @ 1m) 94dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 28Hz- 26kHz Drive unit complement 1 x 250mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, ferrite magnet system Crossover frequency 750Hz Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass. Cryo-Lite treated. System adjustments High frequency energy (1.8kHz - 26kHz) +/- 3dB, Presence (2.5kHz - 5.0kHz) +/- 3dB Dimensions - HxWxD 918 x 450 x 381mm (36.1 x 17.7 x 15.0") Weight - Each 45.2kg Finishes Walnut

System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 20 - 350 Peak power handling (Watt) 700 Continuous power handling (Watt RMS) 175 Sensitivity (2.83 Volt @ 1m) 96dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 25Hz- 26kHz Drive unit complement 1 x 300mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, ferrite magnet system Crossover frequency 750Hz Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass. Cryo-Lite treated. System adjustments High frequency energy (750Hz - 26kHz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB Dimensions - HxWxD 948 x 550 x 421mm (37.3 x 21.7 x 16.6") Weight - Each 54.5kg Finishes Walnut

System Type 2 way, downwards firing port with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 30 - 180 Peak power handling (Watt) 360 Continuous power handling (Watt RMS) 90 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 35Hz - 34kHz Drive unit complement 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system Crossover frequency 1.7kHz Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated. Dimensions - HxWxD 465 x 278 x 389mm (18.3 x 10.9 x 15.3) Weight - Each 13.6 (30.0lbs)

SIGNATURE 507 4 way, double bass, bass reflex DRIVERS 2 x 6.5 woofer, 6.5 midrange, 1.2 dome-tweeter, 0.75 super-tweeter POWER HANDLING (RMS/MAX) 200 / 350 watts IMPEDANCE 4 8 ohms FREQUENCY RESPONSE 23 53000 Hz CROSSOVER FREQUENCIES 400 Hz/2800 Hz/17500 Hz RECOMMENDED AMPLIFIER OUTPUT> 30 watts SENSITIVITY 92 dB CABINET SURFACE Front: Piano black / Cabinet: Ash decor black Front: Anthracite satin / Cabinet: Ash decor mocca DIMENSIONS (WxHxD) Cabinet: 205 x 1030 x 332 mm Cabinet incl. feet and terminal: 286 x 1070 x 332 mm WEIGHT 18.8 kg

PRINCIPLE 3.5 way, dual 6.5" woofer-midrange, bass reflex DRIVERS 6.5 woofer-midrange 1.2" dome-tweeter 0.75" super-tweeter 6.5 woofer POWER HANDLING (RMS/MAX.) 170/300 Watts SENSITIVITY (2.8V/1M) 92 dB IMPEDANCE 4 8 Ohms FREQUENCY RESPONSE 24 - 53000 Hz CROSSOVER FREQUENCIES 330 Hz / 2800 Hz / 17500 Hz DIMENSIONS (WXHXD) Enclosure: 205 x 930 x 332 Enclosure incl. Spikes: 286 x 970 x 332 mm

Principle 3-way bass reflex Crossover Frequencies 320 Hz, 3,300 Hz Recommended Amplifier Output ab 30 watts Sensitivity (2.8V/1m) 92 dB Cabinet surface Ash Decor Black

System Type 2 way, downwards firing port, with BassTraxTM Tractrix diffuser. Twin cavity coupled reflex Recommended amplifier power (Watt RMS) 40- 180 Continuous power handling (Watt RMS) 90 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 30Hz- 34kHz Drive unit complement 1 x 200mm IsoFlareTM, multi-fibre bass/ mid, with 25mm titanium, dome compression tweeter. 1 x 200mm multi-fibre bass Crossover frequency 250Hz & 1.7kHz Crossover type 2nd order low pass, 1st order high pass Dimensions - HxWxD 1114 x 322 x 380mm (43.9 x 12.7 x 15.0) Weight - Each 25.2kg (55.6lb)

System Type 2 way, rear ported Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 32Hz - 34kHz Drive unit complement 2 x 150mm multi-fibre bass / mid 1 x 25mm titanium dome tweeter

System Type 2 way, rear ported Recommended amplifier power (Watt RMS) 35- 150 Continuous power handling (Watt RMS) 75 Sensitivity (2.83 Volt @ 1m) 91dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 32Hz- 28kHz Drive unit complement 2 x 150mm multi-fibre bass/ mid 1 x 25mm polyester dome tweeter Crossover frequency 3.2kHz Crossover type 2nd order low pass, 3rd order high pass Dimensions - 962 x 233 x 308mm (37.9 x 9.2 x 12.1) Weight - Each 14.6kg (32.2lb)
